NETICA API

JAVA VERSION 5.04

norsys.netica.gui
Class NetPanel

java.lang.Object
  |
  +--java.awt.Component
        |
        +--java.awt.Container
              |
              +--javax.swing.JComponent
                    |
                    +--javax.swing.JPanel
                          |
                          +--norsys.netica.gui.NetPanel

All Implemented Interfaces:

javax.accessibility.Accessible, DataDisplayer, java.util.EventListener, java.awt.image.ImageObserver, java.awt.MenuContainer, NeticaListener, RecursingEventListener, java.io.Serializable

public class NetPanel

extends javax.swing.JPanel

implements RecursingEventListener, java.util.EventListener, DataDisplayer, NeticaListener

A javax.swing.JPanel for displaying a net. The net's appearance is similar to that in Netica Application (TM). For instance:

Fig. 1. A sample NetPanel.

The NetPanel is a container for NodePanels and draws links between the NodePanels.

You may freely change its appearance (background and foreground Colors, border styles, etc.), just as you would any JPanel.

Several static variables are provided for controlling some aspects of the NetPanels appearance. Feel free to modify them.

Since:

3.0

Version:

5.04 - January 21, 2012

See Also:

Serialized Form

Inner classes inherited from class javax.swing.JPanel

javax.swing.JPanel.AccessibleJPanel

Inner classes inherited from class javax.swing.JComponent

javax.swing.JComponent.AccessibleJComponent

Inner classes inherited from class java.awt.Container

java.awt.Container.AccessibleAWTContainer

Inner classes inherited from class java.awt.Component

java.awt.Component.AccessibleAWTComponent

Field Summary

static java.awt.Color	defaultBackgroundColor The background color of this NetPanel upon construction.
static java.awt.Color	defaultForegroundColor The foreground color of this NetPanel upon construction.
static java.awt.Color	defaultLinkColor The color of any links drawn in this NetPanel.
static int	defaultLinkPolicy One of LINK_POLICY_NONE, LINK_POLICY_BELOW, or LINK_POLICY_ABOVE.
static int	defaultLinkWidth The width of the arrow shafts used in displaying links.
static int	LINK_POLICY_ABOVE Display the net's links, such that, should they overlap any NodePanels, the links appear above the nodes.
static int	LINK_POLICY_BELOW Display the net's links, such that, should they overlap any NodePanels, the nodes appear above the links.
static int	LINK_POLICY_NONE Do not display the net's links.

Fields inherited from class javax.swing.JComponent

accessibleContext, listenerList, TOOL_TIP_TEXT_KEY, ui, UNDEFINED_CONDITION, WHEN_ANCESTOR_OF_FOCUSED_COMPONENT, WHEN_FOCUSED, WHEN_IN_FOCUSED_WINDOW

Fields inherited from class java.awt.Component

BOTTOM_ALIGNMENT, CENTER_ALIGNMENT, LEFT_ALIGNMENT, RIGHT_ALIGNMENT, TOP_ALIGNMENT

Fields inherited from interface java.awt.image.ImageObserver

ABORT, ALLBITS, ERROR, FRAMEBITS, HEIGHT, PROPERTIES, SOMEBITS, WIDTH

Constructor Summary

NetPanel(Net net, int nodeStyle)

Creates a new NetPanel for displaying the given net.

Method Summary

void	addListenerToAllComponents(java.util.EventListener eventListener) Add the given EventListener to this object and, if it is a Container, to all RecursingEventListeners it contains.
void	eventOccurred(NeticaEvent event) A call-back method that Netica will call to indicate an event occurred.
java.util.Vector	getLinkGraphics() Returns a collection of LinkGraphic objects, one for each link in the Net.
Net	getNet() Return the Net that this NetPanel represents.
NodePanel[]	getNodePanels() Returns the list of NodePanels contained by this NetPanel.
NodeList	getNodesWithDisplayMode(int displayMode) Returns the list of Nodes in this NetPanel that are in the display mode.
void	paintComponent(java.awt.Graphics g) Overrides javax.swing.JComponent.paintComponent() to draw link arrows on this JPanel.
void	refreshDataDisplayed() Refresh all the data in this graphical Component, so that it correctly represents the current state of the Netica object it represents.
void	remove(java.awt.Component comp) Be sure to call super.remove(component), if you override this.
void	removeListenerFromAllComponents(java.util.EventListener eventListener) Remove the given EventListener from this object and, if it is a Container, from all RecursingEventListeners it contains.
void	replaceNodePanel(NodePanel original, NodePanel replacement) Replace one NodePanel in this NetPanel with another one representing the same Node.
void	setLinkPolicy(int linkPolicy) Sets the policy for displaying links, that is, whether they appear above or below NodePanels, or not at all.
void	setNodeStyle(NodeList nodeList, int newStyle) Change the display mode style of all the nodes in nodeList to newStyle.
void	setSubnet(NodeList nodeList) Display only those nodes in nodeList.

Methods inherited from class javax.swing.JPanel

getAccessibleContext, getUIClassID, paramString, updateUI

Methods inherited from class javax.swing.JComponent

addAncestorListener, addNotify, addPropertyChangeListener, addPropertyChangeListener, addVetoableChangeListener, computeVisibleRect, contains, createToolTip, disable, enable, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, fireVetoableChange, getActionForKeyStroke, getActionMap, getAlignmentX, getAlignmentY, getAutoscrolls, getBorder, getBounds, getClientProperty, getComponentGraphics, getConditionForKeyStroke, getDebugGraphicsOptions, getGraphics, getHeight, getInputMap, getInputMap, getInputVerifier, getInsets, getInsets, getListeners, getLocation, getMaximumSize, getMinimumSize, getNextFocusableComponent, getPreferredSize, getRegisteredKeyStrokes, getRootPane, getSize, getToolTipLocation, getToolTipText, getToolTipText, getTopLevelAncestor, getVerifyInputWhenFocusTarget, getVisibleRect, getWidth, getX, getY, grabFocus, hasFocus, hide, isDoubleBuffered, isFocusCycleRoot, isFocusTraversable, isLightweightComponent, isManagingFocus, isMaximumSizeSet, isMinimumSizeSet, isOpaque, isOptimizedDrawingEnabled, isPaintingTile, isPreferredSizeSet, isRequestFocusEnabled, isValidateRoot, paint, paintBorder, paintChildren, paintImmediately, paintImmediately, print, printAll, printBorder, printChildren, printComponent, processComponentKeyEvent, processFocusEvent, processKeyBinding, processKeyEvent, processMouseMotionEvent, putClientProperty, registerKeyboardAction, registerKeyboardAction, removeAncestorListener, removeNotify, removePropertyChangeListener, removePropertyChangeListener, removeVetoableChangeListener, repaint, repaint, requestDefaultFocus, requestFocus, resetKeyboardActions, reshape, revalidate, scrollRectToVisible, setActionMap, setAlignmentX, setAlignmentY, setAutoscrolls, setBackground, setBorder, setDebugGraphicsOptions, setDoubleBuffered, setEnabled, setFont, setForeground, setInputMap, setInputVerifier, setMaximumSize, setMinimumSize, setNextFocusableComponent, setOpaque, setPreferredSize, setRequestFocusEnabled, setToolTipText, setUI, setVerifyInputWhenFocusTarget, setVisible, unregisterKeyboardAction, update

Methods inherited from class java.awt.Container

add, add, add, add, add, addContainerListener, addImpl, countComponents, deliverEvent, doLayout, findComponentAt, findComponentAt, getComponent, getComponentAt, getComponentAt, getComponentCount, getComponents, getLayout, insets, invalidate, isAncestorOf, layout, list, list, locate, minimumSize, paintComponents, preferredSize, printComponents, processContainerEvent, processEvent, remove, removeAll, removeContainerListener, setLayout, validate, validateTree

Methods inherited from class java.awt.Component

action, add, addComponentListener, addFocusListener, addHierarchyBoundsListener, addHierarchyListener, addInputMethodListener, addKeyListener, addMouseListener, addMouseMotionListener, bounds, checkImage, checkImage, coalesceEvents, contains, createImage, createImage, disableEvents, dispatchEvent, enable, enableEvents, enableInputMethods, getBackground, getBounds, getColorModel, getComponentOrientation, getCursor, getDropTarget, getFont, getFontMetrics, getForeground, getGraphicsConfiguration, getInputContext, getInputMethodRequests, getLocale, getLocation, getLocationOnScreen, getName, getParent, getPeer, getSize, getToolkit, getTreeLock, gotFocus, handleEvent, imageUpdate, inside, isDisplayable, isEnabled, isLightweight, isShowing, isValid, isVisible, keyDown, keyUp, list, list, list, location, lostFocus, mouseDown, mouseDrag, mouseEnter, mouseExit, mouseMove, mouseUp, move, nextFocus, paintAll, postEvent, prepareImage, prepareImage, processComponentEvent, processHierarchyBoundsEvent, processHierarchyEvent, processInputMethodEvent, processMouseEvent, remove, removeComponentListener, removeFocusListener, removeHierarchyBoundsListener, removeHierarchyListener, removeInputMethodListener, removeKeyListener, removeMouseListener, removeMouseMotionListener, repaint, repaint, repaint, resize, resize, setBounds, setBounds, setComponentOrientation, setCursor, setDropTarget, setLocale, setLocation, setLocation, setName, setSize, setSize, show, show, size, toString, transferFocus

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

public static final int LINK_POLICY_NONE

Do not display the net's links. See setLinkPolicy.

public static final int LINK_POLICY_BELOW

Display the net's links, such that, should they overlap any NodePanels, the nodes appear above the links. See setLinkPolicy.

public static final int LINK_POLICY_ABOVE

Display the net's links, such that, should they overlap any NodePanels, the links appear above the nodes. See setLinkPolicy.

public static java.awt.Color defaultBackgroundColor

The background color of this NetPanel upon construction.

public static java.awt.Color defaultForegroundColor

The foreground color of this NetPanel upon construction.

public static java.awt.Color defaultLinkColor

The color of any links drawn in this NetPanel.

public static int defaultLinkPolicy

One of LINK_POLICY_NONE, LINK_POLICY_BELOW, or LINK_POLICY_ABOVE. The default is LINK_POLICY_BELOW. See setLinkPolicy.

public static int defaultLinkWidth

The width of the arrow shafts used in displaying links. The default is 1 pixel.

Constructor Detail

public NetPanel (

Net	net,
int	nodeStyle

) throws Exception

Creates a new NetPanel for displaying the given net.

nodeStyle is the type of style to initially assign to all the displayed nodes. You can later replace individual NodePanels with new ones of different style using replaceNodePanel.

Parameters:

Net		net		The net to be diplayed.
int		nodeStyle		One of: NODE_STYLE_AUTO_SELECT, NODE_STYLE_LABELED_BOX, NODE_STYLE_CIRCLE, NODE_STYLE_ABSENT, NODE_STYLE_BELIEF_BARS, or NODE_STYLE_TEXT.

Version:

Versions 3.0 and later have this method.

Example:

The following program will graphicallly display the net whose fileName

is given as the first parameter on the command line
  import norsys.netica.*;
  import norsys.netica.gui.*;
  import javax.swing.*;

  class DrawNet extends JFrame{

      public DrawNet( String netName ) throws Exception {
      Net net = new Net( new Streamer( netName ) );
      net.compile();  //optional
      NetPanel netPanel = new NetPanel( net, NodePanel.NODE_STYLE_BELIEF_BARS );
      getContentPane().add(  new JScrollPane(netPanel ) ); //adds the NetPanel, within a JScrollPane, to ourself
      netPanel.setLinkPolicy( NetPanel.LINK_POLICY_BELOW);
      setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );
      setSize( 800, 500 );// or you may prefer: setSize( getPreferredSize() );
      show();
      }

      public static void main( String[] args ) {
          try {
              Environ env = new Environ( null );
              DrawNet dn = new DrawNet( args[0] );
          }
          catch ( Exception e ) {
              e.printStackTrace();
          }
      }
  }

Method Detail

public void addListenerToAllComponents (

EventListener

eventListener

)

Description copied from interface: RecursingEventListener

Add the given EventListener to this object and, if it is a Container, to all RecursingEventListeners it contains.

Parameters:

EventListener

eventListener

The listener to be added to this component and to any of its children that are also RecursingEventListeners.

Version:

Versions 3.0 and later have this method.

See Also:

removeListenerFromAllComponents

removes it instead

Specified by:

addListenerToAllComponents in interface RecursingEventListener

public void eventOccurred (

NeticaEvent

event

)

A call-back method that Netica will call to indicate an event occurred.

Parameters:

NeticaEvent

event

An object with information about the event that occurred.

Version:

Versions 3.0 and later have this method.

Specified by:

eventOccurred in interface NeticaListener

public Net getNet ( )

Return the Net that this NetPanel represents.

Version:

Versions 3.0 and later have this method.

public NodePanel[] getNodePanels ( )

Returns the list of NodePanels contained by this NetPanel.

Version:

Versions 3.0 and later have this method.

public NodeList getNodesWithDisplayMode (

int	displayMode

) throws Exception

Returns the list of Nodes in this NetPanel that are in the display mode.

displayMode must be one of NodePanel.DISPLAY_MODE_GRAYED, NodePanel.DISPLAY_MODE_NORMAL, or NodePanel.DISPLAY_MODE_HILITED, otherwise an exception will be thrown.

Parameters:

int

displayMode

One of NodePanel.DISPLAY_MODE_GRAYED, NodePanel.DISPLAY_MODE_NORMAL, or NodePanel.DISPLAY_MODE_HILITED

Version:

Versions 3.0 and later have this method.

See Also:

NodePanel.setDisplayMode

Set the display state of a particular NodePanel

public void paintComponent (

java.awt.Graphics

g

)

Overrides javax.swing.JComponent.paintComponent() to draw link arrows on this JPanel.

NOTICE:If you override this method, you probably want to call super.paintComponent() in your method to ensure that the net's links are drawn.

Parameters:

java.awt.Graphics

g

The AWT/SWING Graphics context.

Version:

Versions 3.0 and later have this method.

Overrides:

paintComponent in class javax.swing.JComponent

public void refreshDataDisplayed ( ) throws NeticaException

Description copied from interface: DataDisplayer

Refresh all the data in this graphical Component, so that it correctly represents the current state of the Netica object it represents.

If this is a Container object, then it should arrange to invoke the refreshDataDisplayed method of all the DataDisplayer objects it contains.

Version:

Versions 3.0 and later have this method.

Specified by:

refreshDataDisplayed in interface DataDisplayer

public void remove (

java.awt.Component

comp

)

Be sure to call super.remove(component), if you override this.

Overrides:

remove in class java.awt.Container

public void removeListenerFromAllComponents (

EventListener

eventListener

)

Description copied from interface: RecursingEventListener

Remove the given EventListener from this object and, if it is a Container, from all RecursingEventListeners it contains.

Parameters:

EventListener

eventListener

The listener to be removed from this component and from any of its children that are also RecursingEventListeners.

Version:

Versions 3.0 and later have this method.

See Also:

addListenerToAllComponents

adds it instead

Specified by:

removeListenerFromAllComponents in interface RecursingEventListener

public Vector getLinkGraphics ( )

Returns a collection of LinkGraphic objects, one for each link in the Net.

WARNING:When replaceNodePanel is called, a NetPanel will replace all of its LinkGraphic objects with new ones.

Version:

Versions 3.0 and later have this method.

public void replaceNodePanel (

NodePanel	original,
NodePanel	replacement

) throws NeticaException

Replace one NodePanel in this NetPanel with another one representing the same Node.

original should be a NodePanel currently in this NetPanel. Otherwise, an exception will be thrown.

replacement must be a NodePanel representing the same Node that original represents. Otherwise, an exception will be thrown.

WARNING:This method causes the NetPanel to replace all of its LinkGraphic objects with new ones.

Parameters:

NodePanel		original		The NodePanel to be replaced.
NodePanel		replacement		The NodePanel to be inserted.

Version:

Versions 3.0 and later have this method.

public void setLinkPolicy (

int	linkPolicy

)

Sets the policy for displaying links, that is, whether they appear above or below NodePanels, or not at all.

linkPolicy should be one of LINK_POLICY_NONE, LINK_POLICY_BELOW, or LINK_POLICY_ABOVE.

Parameters:

int

linkPolicy

One of LINK_POLICY_NONE, LINK_POLICY_BELOW, or LINK_POLICY_ABOVE.

Version:

Versions 3.0 and later have this method.

public void setSubnet (

NodeList

nodeList

) throws Exception

Display only those nodes in nodeList.

The NetPanel will still retain all the NodePanels for this net, it will just only display those whose Nodes are in nodeList.

Only the links between the nodes in nodeList will be drawn.

Parameters:

NodeList

nodeList

The list of nodes to display.

Version:

Versions 3.0 and later have this method.

public void setNodeStyle (

NodeList	nodeList,
int	newStyle

) throws Exception

Change the display mode style of all the nodes in nodeList to newStyle.

nodeList may be null in which case all the net's nodes will have their style set.

newStyle should be one of:

NODE_STYLE_AUTO_SELECT		Netica-J will choose an appropriate style for you from amongst the following.
NODE_STYLE_LABELED_BOX		Node title/name in rounded box
NODE_STYLE_CIRCLE		Plain circle
NODE_STYLE_ABSENT		Empty space (but links to/from it still appear)
NODE_STYLE_BELIEF_BARS		Netica (TM) style belief bars, a very popular styl

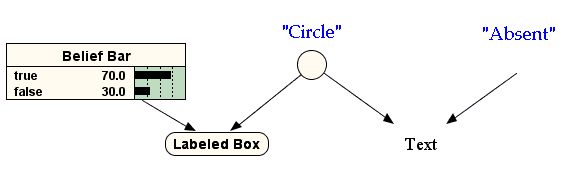

Each of the above is depicted in the following diagram:


Parameters:

NodeList		nodeList		The list of nodes to change. If null, then this is the same as a list of all of the net's nodes.
int		nodeStyle		A valid NODE_STYLE_X constant.

Version:

Versions 3.0 and later have this method.
